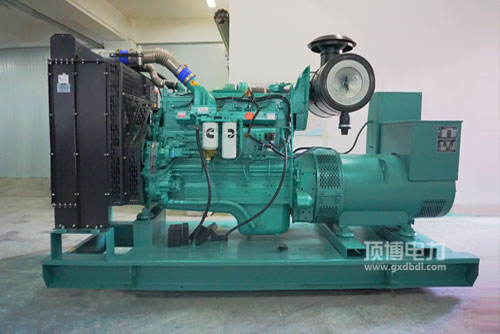

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用启因素汽柴油成本性好: 领先的汽柴油保持装置，独具的STC、ESTC 分类保持装置，非常规设计的的汽缸最上层自燃室，高压力喷射式汽柴油，足够雾化吸入，自燃足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用启因素瞬态特点高品质: 完满的启因素整体布局设置，结合康明斯独家的EFC系统的，的控制要求高，运行的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用启倾向升电功率高: 一体化开发紧密.形态分布合理的，正常运作保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50做到国非路线三是价段及中美洲Tier2. Tier 3进行排放条例耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理应得性好， 发起机行驶及维护与清洁清洁便民，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率范围之内 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯发电量用启行为的亮点：体型大小小， 压缩的变高， 喷淋喷嘴室内空气微波加热，利于开始，手机移动车截供电的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机型號	使用工作功率(kW)Prime Power	预备电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
